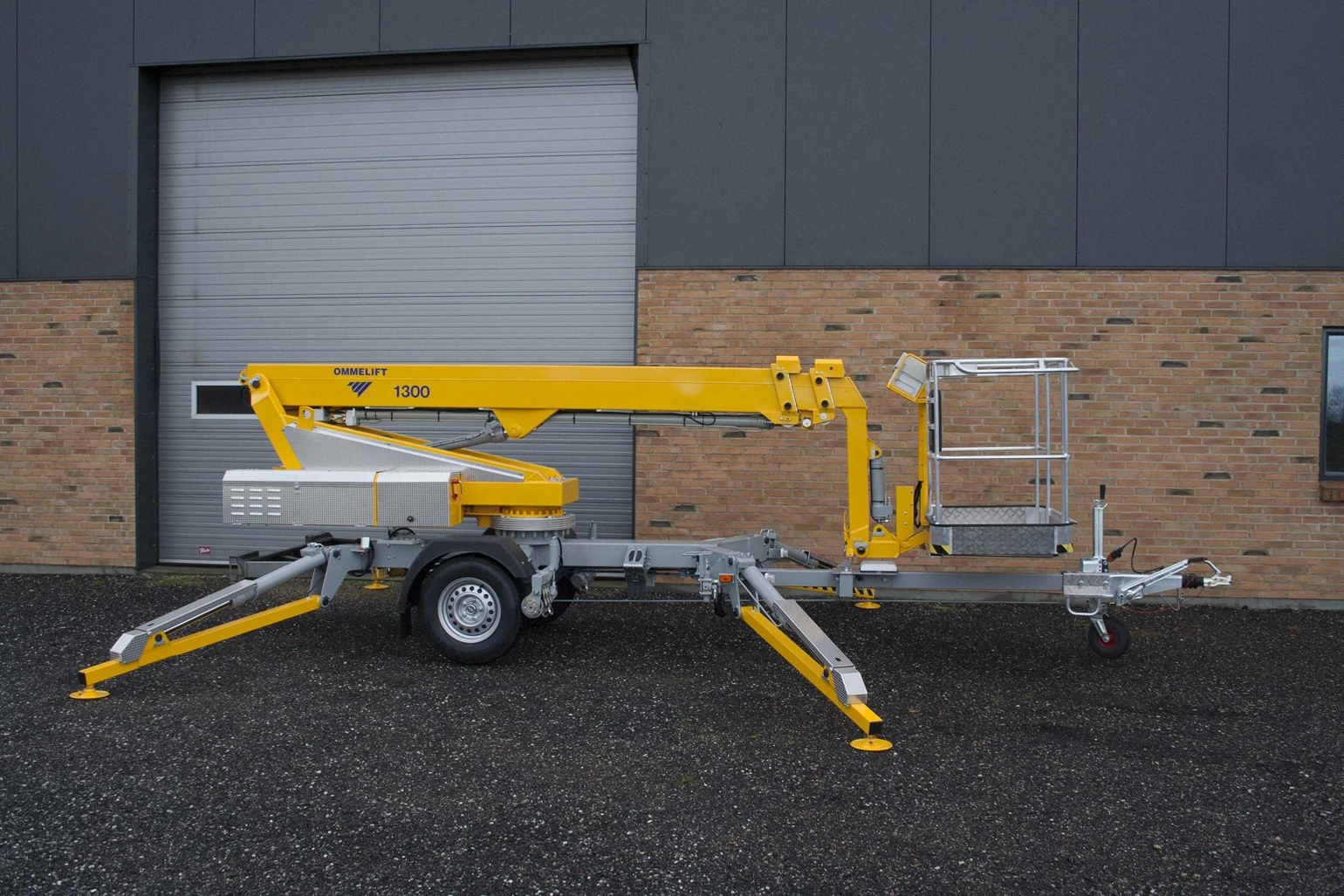

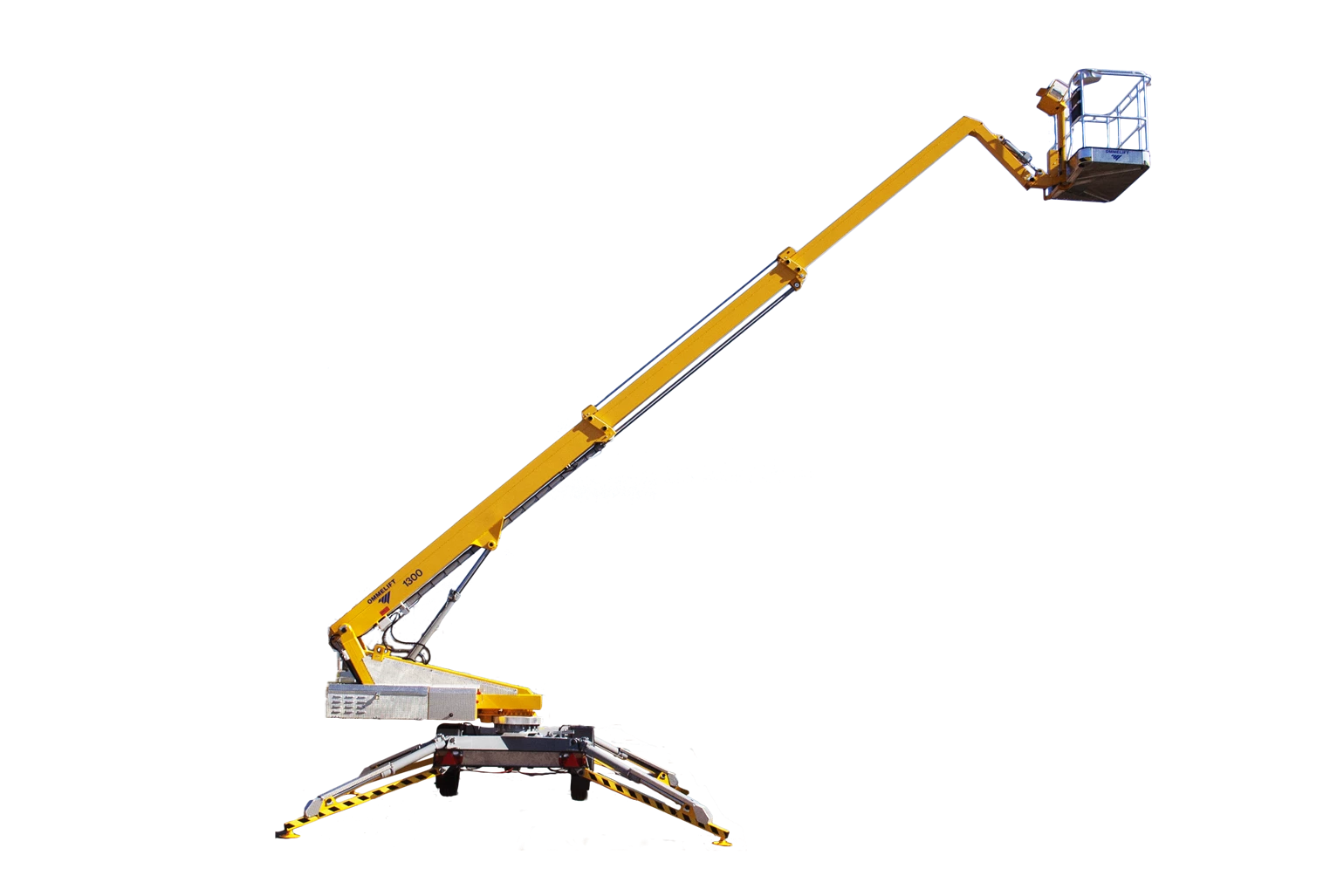

| Type | 1300 E | 1300 EB |
|---|---|---|
| Max. working height | 12.8 m | 12.8 m |
| Max. outreach | 9.00 m | 9.00 m |
| Max. basket load | 200 kg | 200 kg |
| Basket size | 1.25 x 0.8 x 1.1 m | 1.25 x 0.8 x 1.1 m |
| Basket rotation | ±50° | 50° |
| Turret rotation | ±355° | 355° |
| Travelling length | 6.27 m | 6.27 m |
| Travelling height | 1.93 m | 1.93 m |
| Travelling width | 1.60 m | 1.60 m |
| Operational width | 4.12 m | 4.12 m |
| Power supply | 230 V / 16 A | – |
| Battery (maintenance-free) | – | 24 V / 110 Ah / 5h |
| Charger | – | 24 V / 15 A |
| Total weight | 1650 kg | 1750 kg |
