Features

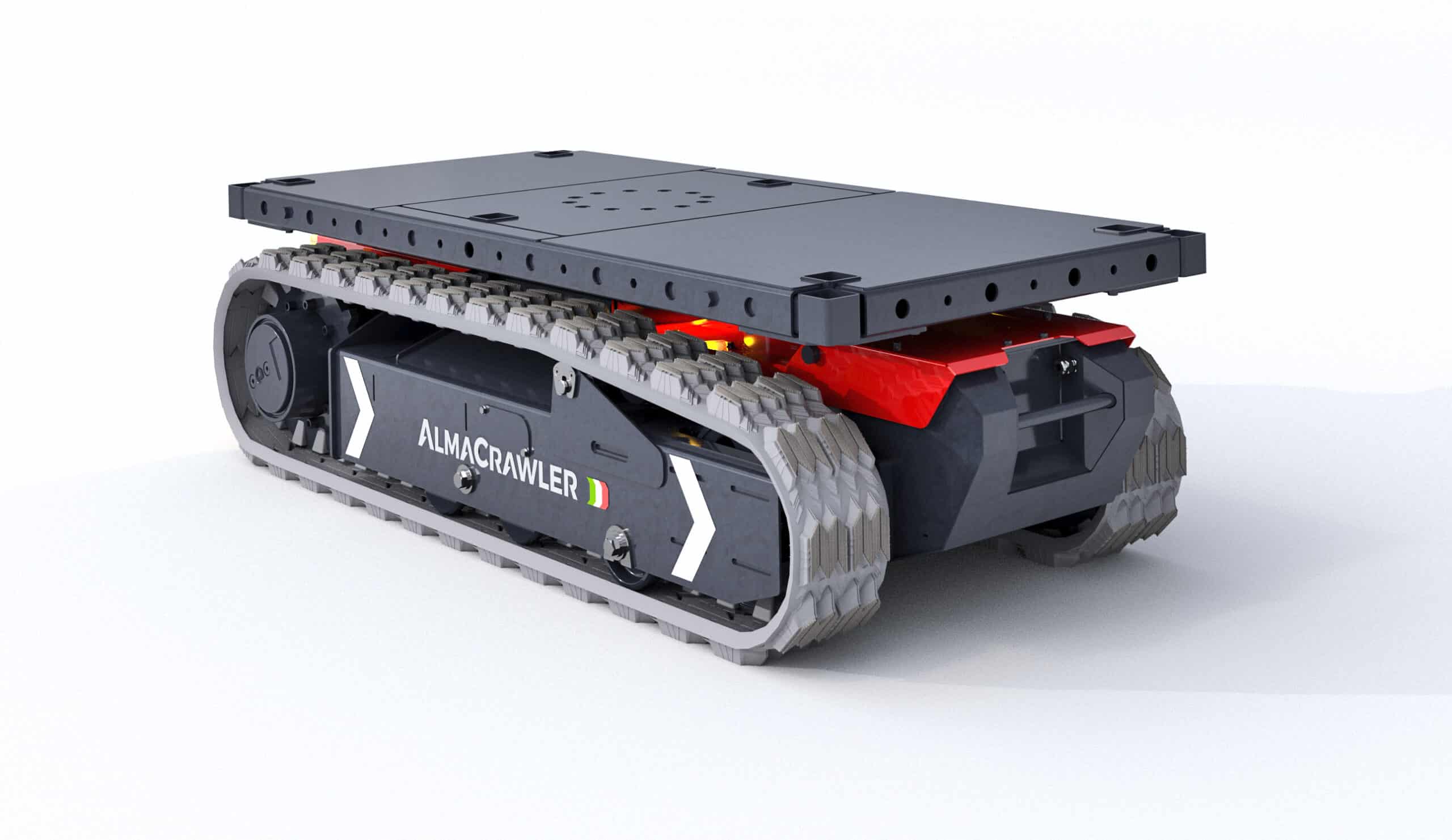

The Multi-Loader 3.0 RT is a variant designed to work on more difficult, uneven and slippery terrain that require a superior ground clearance.
With a ground clearance of a good 220 mm, it is suitable for working in extreme conditions.

It has class-leading electric drive with two super quiet AC electric motors 5.3 kW each (rated IP 67), can be fitted with AGM or Lithium batteries and features three power management configurations:

ECO 1.2 km/h
STD 1.8 km/h
POW 4.2 km/h

Fully electric tracked carrier with 3000 kg capacity
The Multi-Loader 3.0 RT is a variant designed to work on more difficult, uneven and slippery terrain that require a superior ground clearance.
With a ground clearance of a good 220 mm, it is suitable for working in extreme conditions.

It has class-leading electric drive with two super quiet AC electric motors 5.3 kW each (rated IP 67), can be fitted with AGM or Lithium batteries and features three power management configurations:

ECO 1.2 km/h
STD 1.8 km/h
POW 4.2 km/h

Main features
Full electric drive

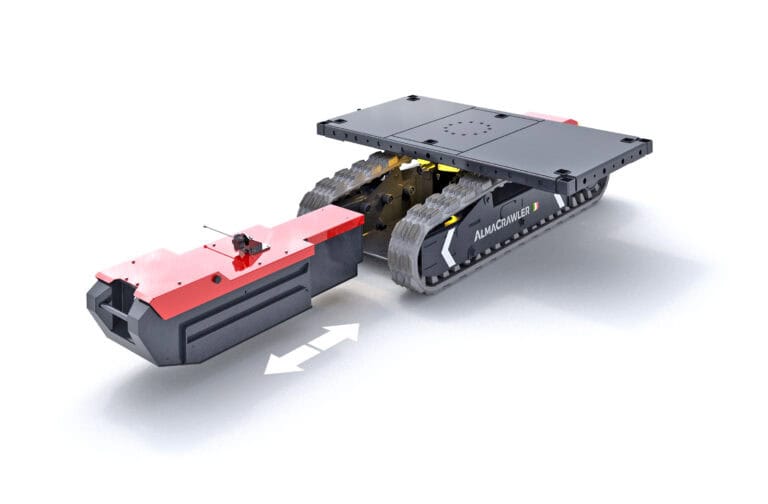

Fully removable battery pack
Ground clearance of a good 220 mm

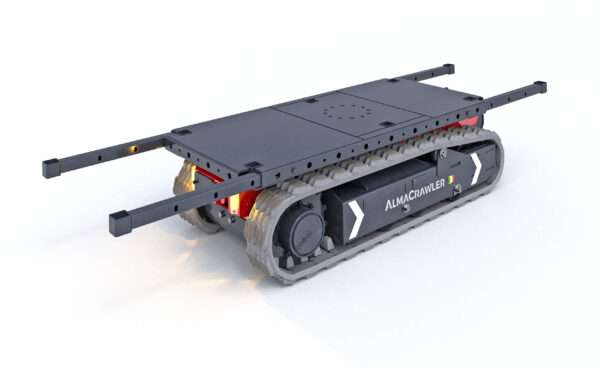

Extendable telescopic beams

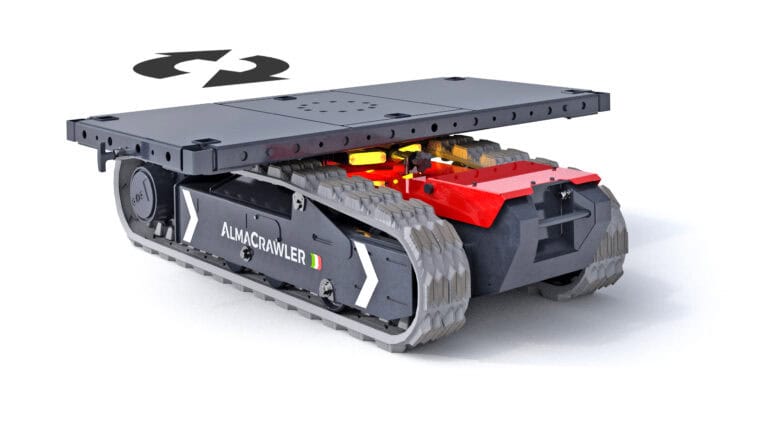

Swivel platform
Adaptive rollers
Standard features
Radio remote control
Provided with display & double battery
On board diagnostics
12V auxiliary socket
Non-marking tracks
Front and rear hazard ligths
Three different driving modes
MAIN / ED-S / DC-S
Three power management configurations
ECO / STD / POW
Automatic tilt alarm with speed reduction
Attachments

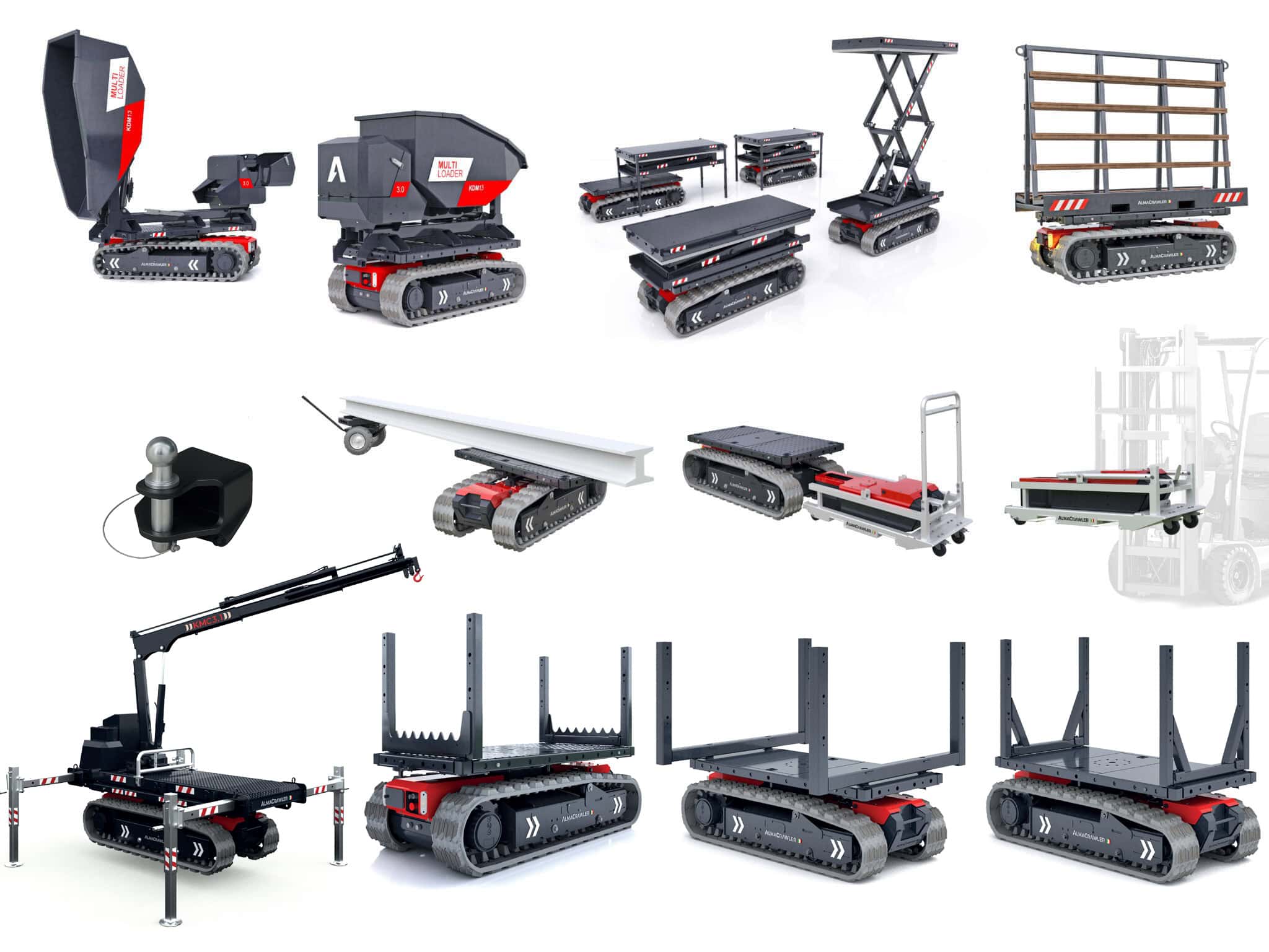

The ML 3.0 RT comes with a wide range of fully installable, completely independent attachments to amplify its range of applications and allow operators to achieve more.

Dumper KIT – Installable dumper kit, with rotating base and radio remote controlled.
Dolly – Support extension, helps carry extra-long loads easily.
Multi-Frame – Double-sided a-frame rack for the safe transport and storage of windows, flat glass or insulating glass units.
Lifter KIT – The Lifter Kit is a fully removable hydraulic scissor lift table available in two options: KML 1.0 – Single stage, KML 2.0 – Double stage.
Forest, Pipe & Drywall KIT – Kit for safe transport of logs, pipes or drywall.
Rear tow hook – Rear hook for towing loads.
Crane KIT – Crane for Multi-Loader 3.0 FX and RT.

Max Capacity: 3000 kg (<25°)
Max Capacity at Max Gradient: 2000 kg
Max Longitudinal Gradient: 40°
Max Lateral Gradient: 25°
Width: 890 mm
Length: 1860 mm
Track Length: 1230 mm
Track Width: 250 mm
Ground Clearance: 220 mm
Platform Ground Height: 720 mm
Max Speed: 4.2 km/h
Swivel Platform: Standard
Power of Electric Motors: 10.6 kW
Voltage: 48 V
Battery Capacity & Type (ELC): AGM 100Ah
Battery Capacity & Type (LTH): LTH 100Ah
Charger Input & Time (ELC): 7h – 13A
Charger Input & Time (LTH): 4h – 20A
Ingress Protection IP: IP67
Controller: Remote Radio Control
Non-Marking Tracks: Optional
LTH Battery Pack: LTH 100Ah
LTH Recharging Time: 7h – 13A
LTH Total Weight: 805 kg
ELC Battery Pack: AGM 100Ah
ELC Recharging Time: 7h – 13A
ELC Total Weight: 975 kg

Title	Document Type	Download
Brochures MULTI-LOADER 3.0 RT	PDF	Download

Make An Enquiry

MULTI-LOADER 3.0 RT

Features

Related Products

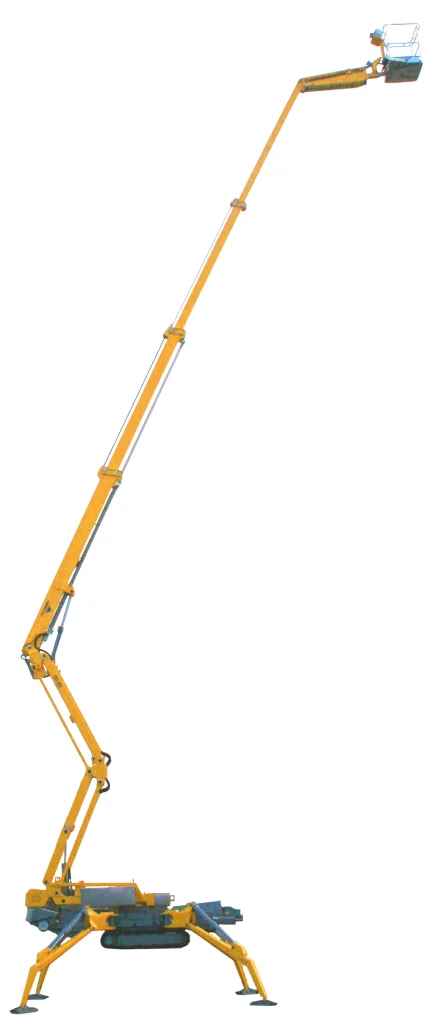

25.00 RXJ

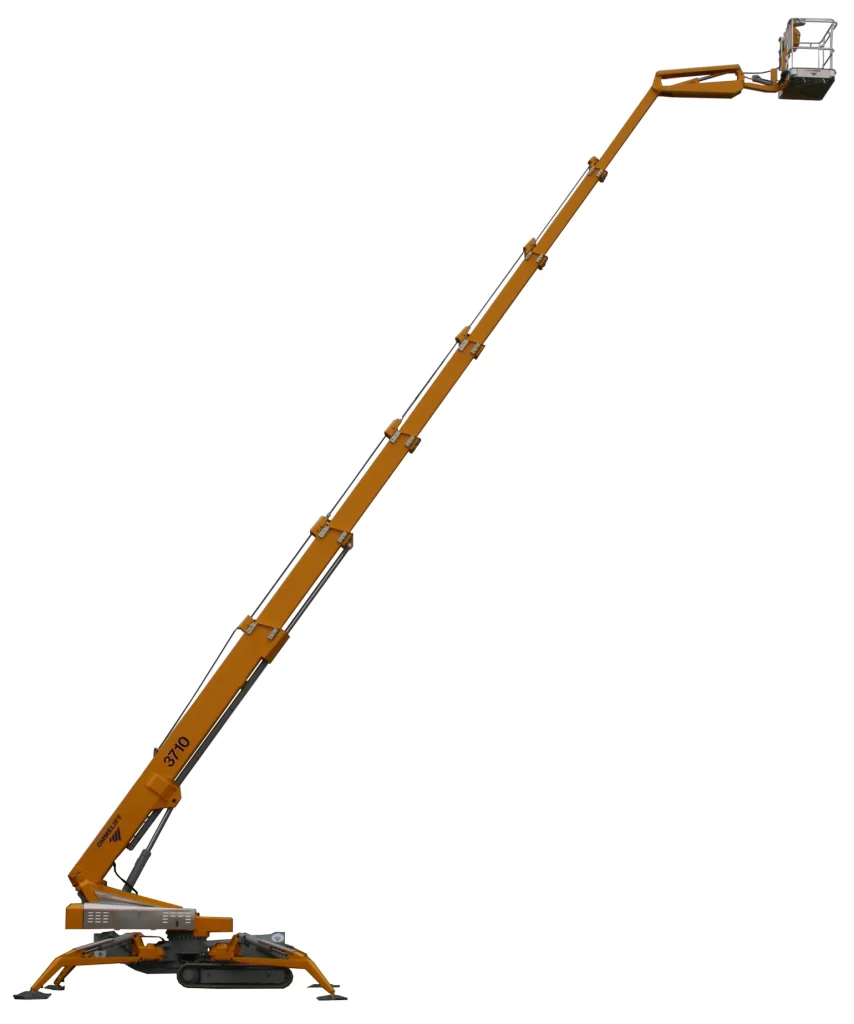

3710 RJ
