Features

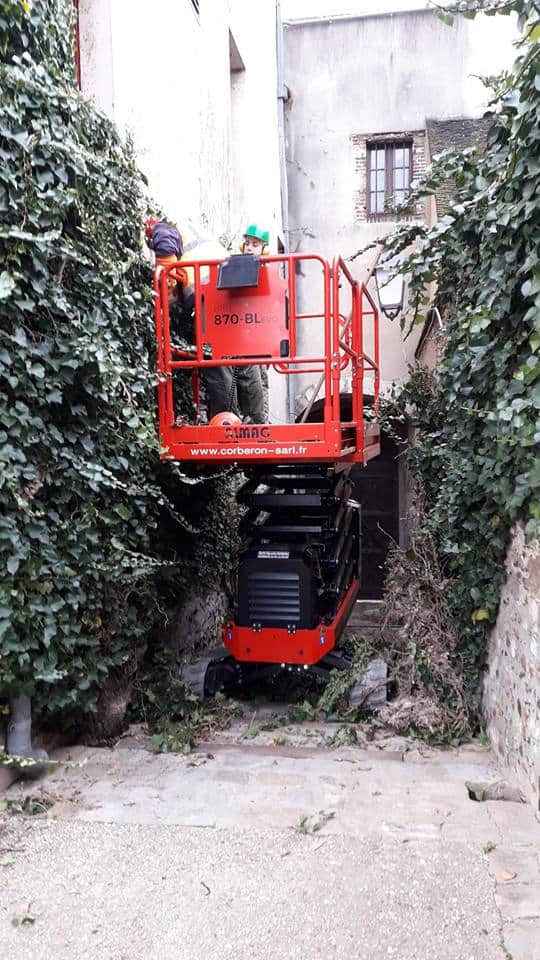

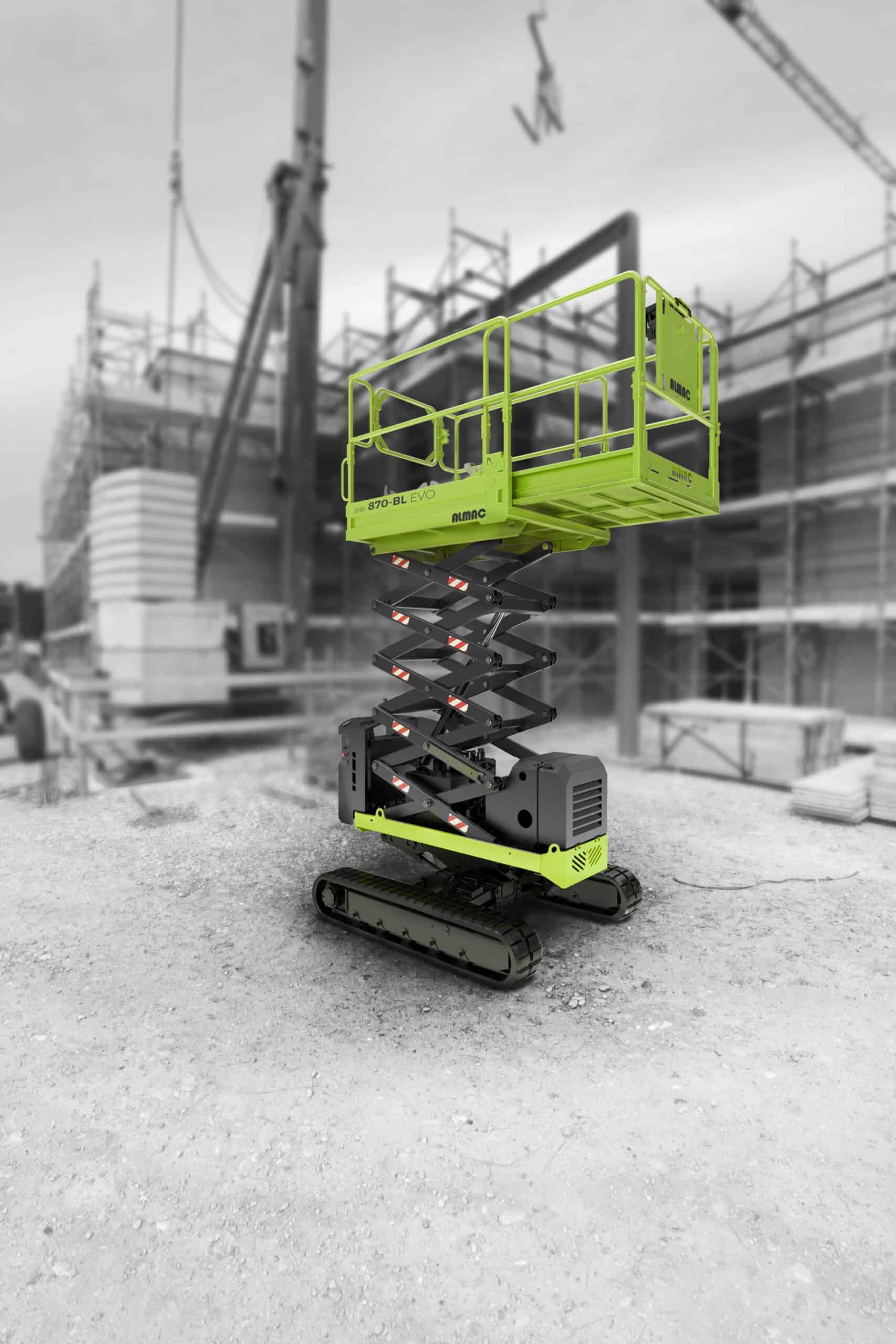

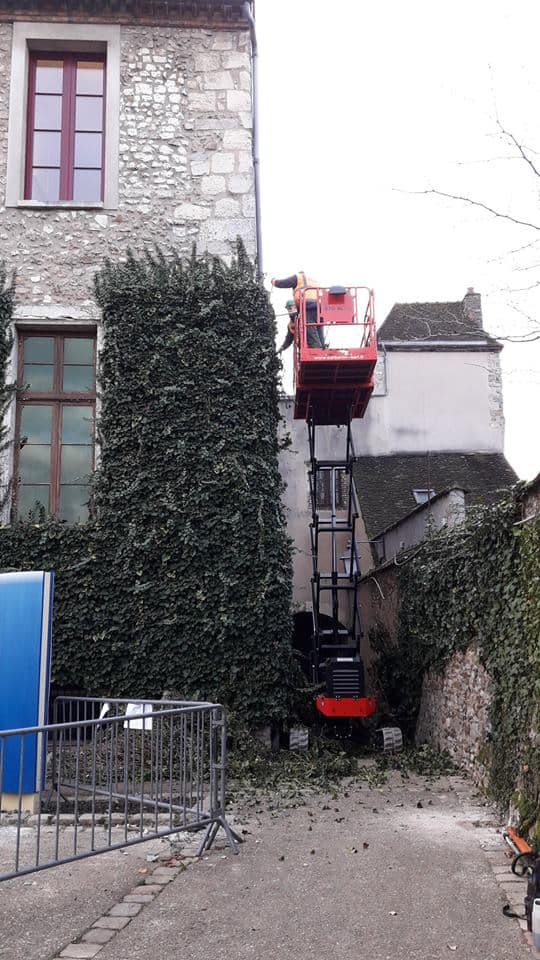

The Bibi 870-BL EVO tracked lift is a further development of the new 870 line and is equipped with a Kubota Z482 twin-cylinder diesel engine, it operates at up to 7.90 meters in height, guaranteeing maximum safety in all use conditions.

Min. width: 1,30 m
Capacity: 250 kg
Max height: 7,90 m

The tracked lift with bi-leveling technology, equipped with a Kubota engine
The Bibi 870-BL EVO tracked lift is a further development of the new 870 line and is equipped with a Kubota Z482 twin-cylinder diesel engine, it operates at up to 7.90 meters in height, guaranteeing maximum safety in all use conditions.

What are the advantages of using it?
The model in question, which is the result of the Almac team’s constant commitment to development and design, is a high performance mini-scissor, with a capacity of the 250 kg (2 operators) cabin. The machine is equipped with a series of technological devices, that simplify the operations of those who work in the relevant sector. Its use, in fact, offers the following functional advantages:

Overcoming slopes up to 20 ° longitudinally and 15 ° laterally
High maneuverability in confined spaces
Reduced noise and smoke emission engine
Remote use via radio frequency remote control
What customization is available?
To offer its customers a versatile machine that can meet customers’ different needs, Almac offers some high quality optional for this tracked lift. Specifically, the available customization includes both functional and aesthetic aspects, such as the following ones:

220V – 1000W Electric generator
220 V – 2.2 kW Electric pump
Anti-marking tracks
Color selection

Basket capacity: 250 kg (2 op.)
Basket size: 1.50 x 1.20 m
Max working height: 7.9 m
Max height basket floor: 5.9 m
Moving height: 6.0 m
Accelerator: Automatic
Undercarriage: Bi-Levelling
Basket levelling: Automatic
Longitudinal levelling Front: +/- 16°
Longitudinal levelling Rear: +/- 20°
Lateral levelling: +/- 15°
Electric pump (option): 220V-2,2kW
Direction-Control System: Yes
Easy-Drive System: Yes
Max speed: max 2.20 km/h
Ground emergency: Yes
Control of inclination: Automatic
Gradeability: 25°
Side slope: 21°
Length: 1.94 m
Width: 1.30 ÷ 1.50 m
Min height with narrow tracks: 2.28 (1.98) m
Min height with wide tracks: 1.98 (1.68) m
Compliance: EN 280, ANSI, CSA, AS/NZS
Power: Diesel Kubota Z482
Total Weight: 2450 kg

Title	Document Type	Download
Brochures BIBI 870-BL EVO	PDF	Download
