Features

The Bibi 1090-BL EVO tracked scissor was developed by Almac’s excellent technical staff to carry out operations up to 10 meters in height. Like all the other models in the series, it is equipped with an innovative bi-leveling system and is powered by a Kubota diesel engine.

Min. width: 1,46 m
Capacity: 300 kg
Max height: 10,00 m

The bi-leveling scissor equipped with a Kubota diesel engine for operations up to 10 meters in height
The Bibi 1090-BL EVO tracked scissor was developed by Almac’s excellent technical staff to carry out operations up to 10 meters in height. Like all the other models in the series, it is equipped with an innovative bi-leveling system and is powered by a Kubota diesel engine.

What advantages does it offer?
Relying on Almac will give you the opportunity to get an efficient tracked lift, able to simplify your work operations, even in special situations. Specifically, by choosing the model proposed here, you will get numerous advantages such as the following ones:

Ability to operate in small spaces
Absolute simplicity and safety of use even in conditions of steep slope or rough terrain
What are the available optional?
Although the machinery in question is proposed with numerous standard technological devices, such as the control console, the Dynamic & Proactive lifting system and the Direction control system, Almac makes available some functional optional for this tracked lift. If you choose the mini-scissor here proposed, in fact, you can request some implementations with the inclusion of element such as:

220 V – 2.2 kW Electric pump
220V – 1000W Electric generator
Anti-marking tracks
Moreover, you can modify the aesthetic characteristics of your machine, selecting the color of your choice.

Basket Capacity: 300 kg (2 operators)
Basket Size: 1.80 × 1.30 m
Max Working Height: 10.0 m
Max Basket Floor Height: 8.0 m
Moving Height: 6.5 m
Accelerator: Automatic
Undercarriage: Bi-Levelling
Basket Levelling: Automatic
Longitudinal Levelling Front: ±15°
Longitudinal Levelling Rear: ±20°
Lateral Levelling: ±14°
Electric Pump (Optional): 220V – 2.2 kW
Direction-Control System: Yes
Easy-Drive System: Yes
Ground Emergency: Yes
Control of Inclination: Automatic
Gradeability: 25°
Side Slope: 21°
Width: 1.46 – 1.64 m
Min Height with Narrow Tracks (Folded Railings): 2.42 m (2.08 m)
Min Height with Wide Tracks (Folded Railings): 2.09 m (1.75 m)
Compliance: EN 280, ANSI, CSA, AS/NZS
Power: Diesel Kubota Z602
Total Weight: 2890 kg
Max Speed: 2.40 km/h

Title	Document Type	Download
Brochures BIBI 1090-BL EVO	PDF	Download

Make An Enquiry

BIBI 1090-BL EVO

Features

Related Products

BIBI 1490 EVO

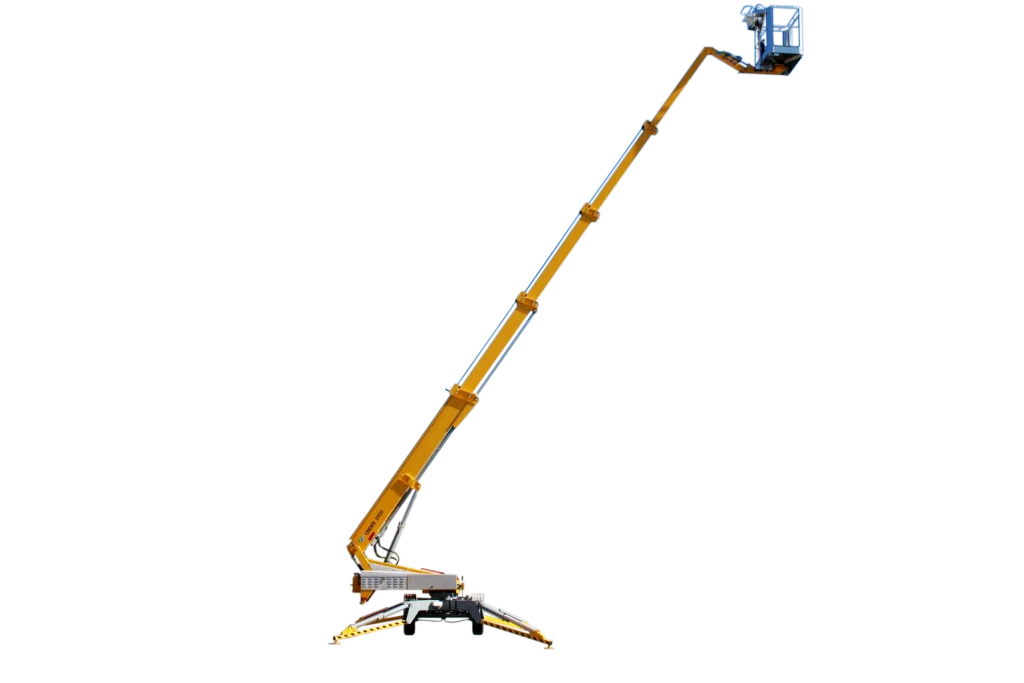

2100 E
