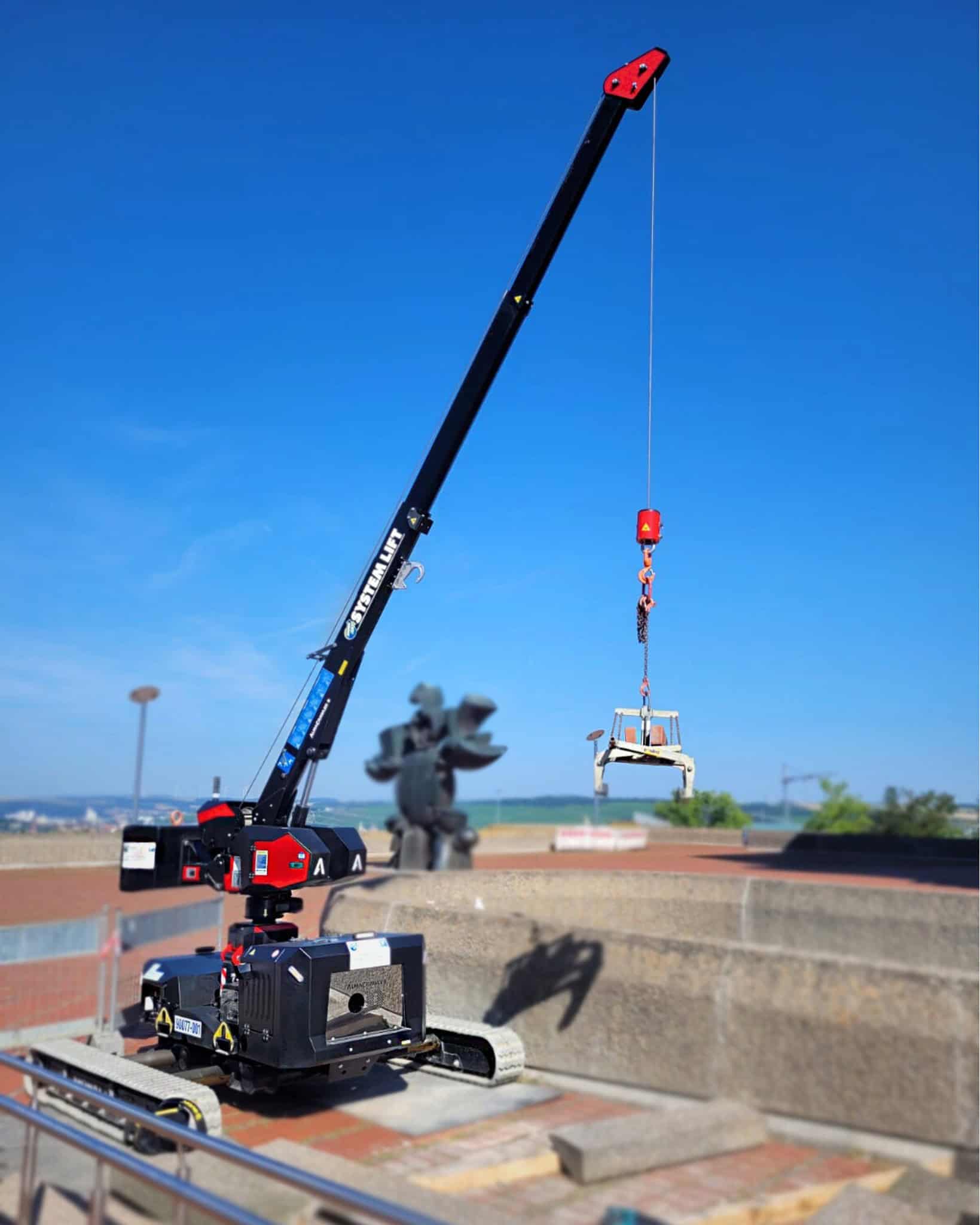

TJ-CRANE 1060
Self-propelled and self-levelling crane
Pick & carry mini-crane with AlmaCrawler self-levelling technology, available either with a Yanmar engine or a full-electric 300Ah Lithium battery pack.
Highly flexible, the TJ-Crane 1060 can be used for various lifting needs and jobsites, both indoor and outdoor.

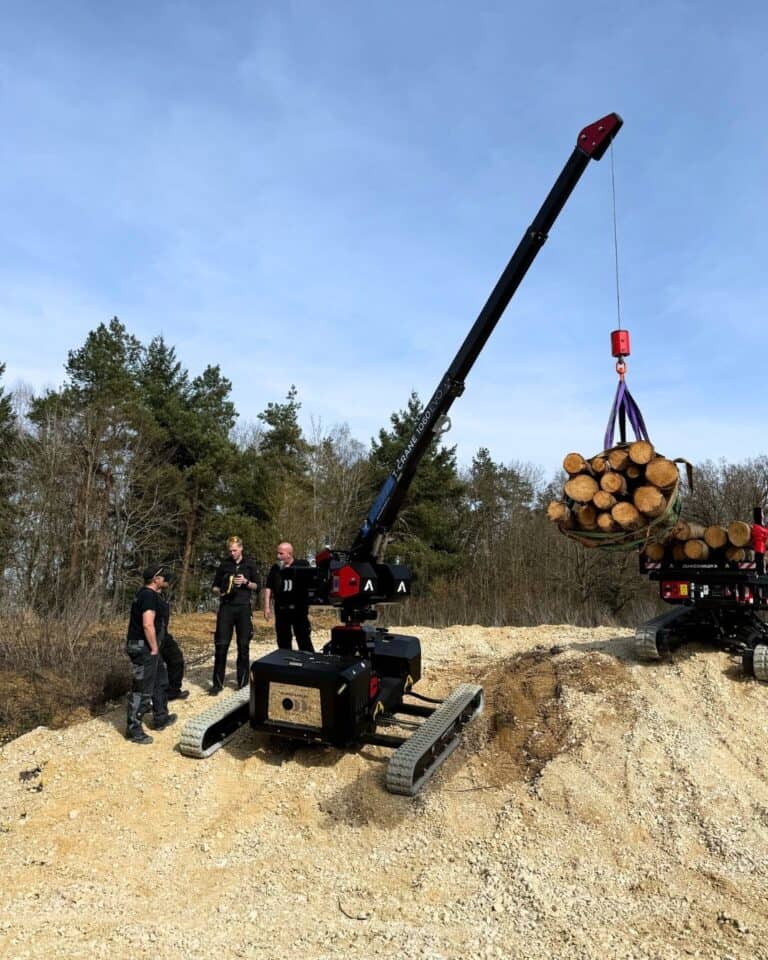

Thanks to our innovative and patented self-levelling technology, the TJ-Crane 1060 can be driven and used on slopes and uneven terrain up to 22°.
Equipped with a standard remote control, the TJ-Crane 1060 easily travels and carries loads up to 990kg, featuring a 8.7m lifting height with a 7.1m maximum working radius.
Removable Counterweight
To ensure maximum flexibility, the TJ-Crane 1060 has been fitted with a removable 1000kg counterweight.
By removing it, the operator is able to lower the overall weight to 2.890 kg for easy transportation by trailer or entrance in jobsites that require very low ground pressure.
MyAlmac Control Panel
Launched in 2020, the MyAlmac Control Panel allows operators and rental companies to simplify and centralize the management of all after-sales activities including diagnostics and service, spare parts purchasing and warranty procedures.
Options:
AlmaCrawler’s aim is to offer its customers platforms that are high-performance, safe and able to meet their needs. For these reasons, the aerial platform TJ-CRANE 1060 can be equipped with several options including:
Non-marking tracks
Electric pump 220V 2.2kW
Arctic lubricant for cold climate
- Max Lifting Height: 8.7 m
- Max Moving Height: 8.7 m
- Rotation Angle: ±110°
- Max Working Radius: 7.1 m × 340 kg
- Max Crane Capacity: 990 kg
- Pick and Carry Capacity: 690 kg
- Length in Stowed Position with Counterweight: 4.3 m
- Length in Stowed Position without Counterweight: 4.21 m
- Min Width in Stowed Position: 1.35 m
- Max Working Width: 2.45 m
- Min Height in Stowed Position: 1.96 m
- Longitudinal Leveling: ±15°
- Lateral Leveling: ±15°
- Max Gradeability: 25°
- Max Side Gradeability: 25°
- Drive Speed (Fast): 2.5 km/h
- Security Speed: 0.3 km/h
- Length of Winch Cable: 30 m
Weight & Traffic Load
- EVO Total Weight with Counterweight: 3890 kg
- EVO Traffic Load with Counterweight: 3.57 kN/m²
- EVO Total Weight without Counterweight: 2890 kg
- EVO Traffic Load without Counterweight: 2.64 kN/m²
- LTH Total Weight with Counterweight: 3950 kg
- LTH Traffic Load with Counterweight: 3.63 kN/m²
- LTH Total Weight without Counterweight: 2950 kg
- LTH Traffic Load without Counterweight: 2.7 kN/m²
Power & Charging
- EVO Engine: 3TNM68 Yanmar Engine (Diesel) – 17 Hp
- LTH Engine: Lithium Battery Pack 300Ah – 48V DC 4 kW
- Battery Charger (LTH): N°2 20A-48V
