Features

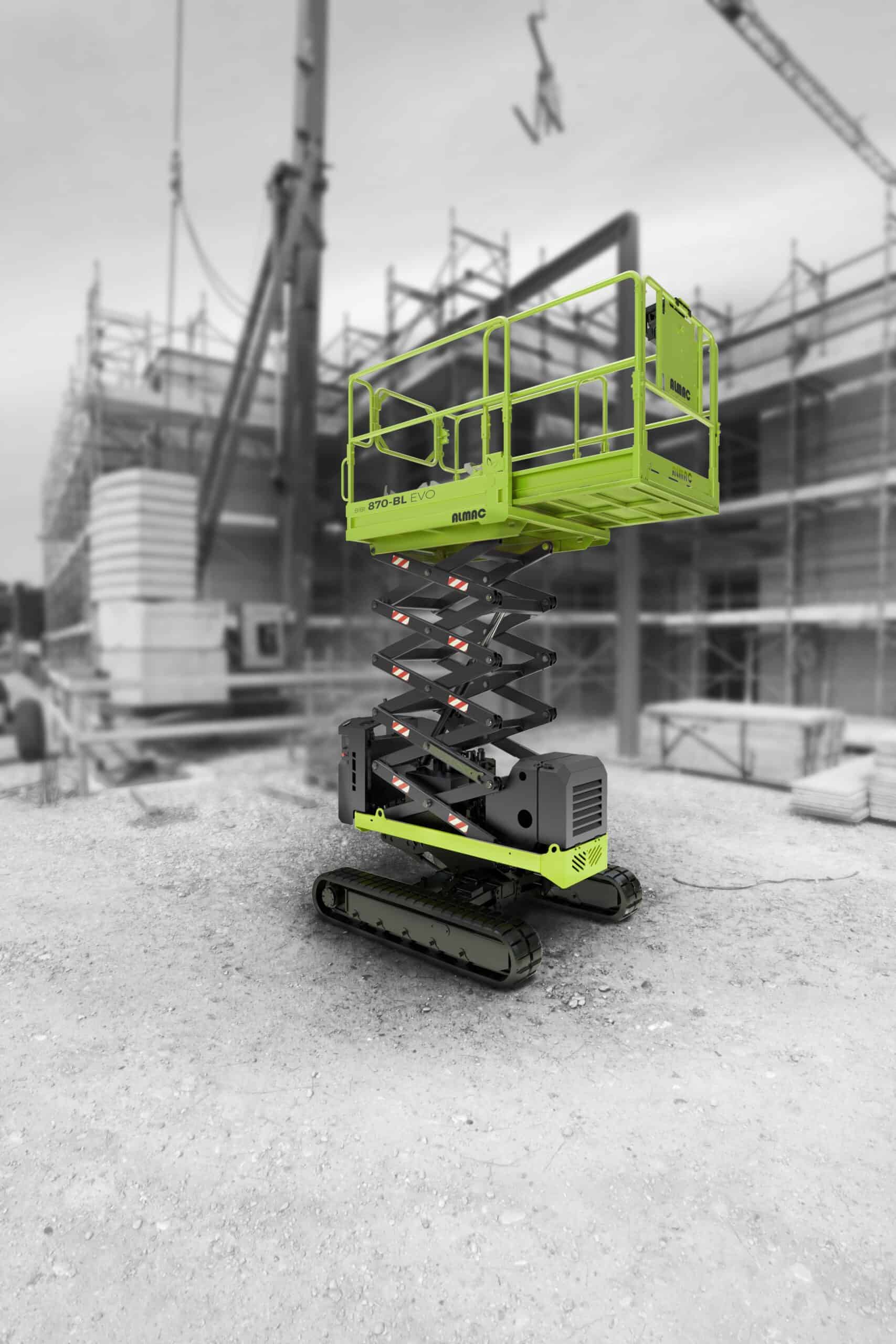

Equipped with an innovative bi-leveling technology and designed to perform up to 10 meters in height, the Bibi 1090-BL EVO Bi-Energy scissor lift is designed by a highly trained expert staff. Its power is entrusted to an electric engine and a KUBOTA Diesel engine.

Min. width: 1,46 m
Capacity: 300 kg
Max height: 10,00 m

THE BI-LEVELING DUAL-SCISSOR MINI-SCISSOR FOR OPERATIONS UP TO 10 METERS IN HEIGHT
Equipped with an innovative bi-leveling technology and designed to perform up to 10 meters in height, the Bibi 1090-BL EVO Bi-Energy scissor lift is designed by a highly trained expert staff. Its power is entrusted to an electric engine and a KUBOTA Diesel engine.

Why should you choose it?
By choosing the model in question, you will be able to rely on a high performance scissor, able to facilitate the various work activities of your operators, who often find themselves faced with exceptional situations. Among the benefits it offers, in fact, there are the following ones:

Ability to operate in indoor environments by taking advantage of the Lithium batteries’ autonomy
Simplicity and safety of use even in conditions of steep inclines or irregular terrain
What are the available optional?
In addition to the standard technological devices installed in the machine in question, such as the console for remote control and all those concerning automatic leveling, Almac offers the possibility of choosing some optional to expand your tracked lift functions. If you are interested in expanding your machine fleet with the mini-scissor here proposed, in fact, you will have the possibility to request optional features such as anti-marking tracks.

If, on the other hand, you are interested in changing the appearance of your machine, you can select a color of your choice.

Basket Capacity: 300 kg (2 operators)
Basket Size: 1.80 × 1.30 m
Max Working Height: 10.0 m
Max Height Basket Floor: 8.0 m
Moving Height: 6.5 m
Accelerator: Automatic
Undercarriage: Bi-Levelling
Basket Levelling: Automatic
Longitudinal Levelling Front: ±15°
Longitudinal Levelling Rear: ±20°
Lateral Levelling: ±14°
Electric Pump (Option): 220V – 2.2 kW
Direction-Control System: Yes
Easy-Drive System: Yes
Ground Emergency: Yes
Control of Inclination: Automatic
Gradeability: 25°
Side Slope: 21°
Width: 1.46 ÷ 1.64 m
Min Height with Narrow Tracks (Folded Railings): 2.42 (2.08) m
Min Height with Wide Tracks (Folded Railings): 2.09 (1.75) m
Compliance: EN 280, ANSI, CSA, AS/NZS
Power: Diesel Kubota Z602 + LTH Pack 100Ah-48V
Total Weight: 2960 kg
Max Speed: 2.40 km/h

Title	Document Type	Download
Brochures BIBI 1090-BL EVO Bi-Energy	PDF	Download
