- Max Capacity: 3000 kg (<25°)
- Max Capacity at Max Gradient: 2500 kg
- Max Longitudinal Gradient: 45°
- Max Lateral Gradient: 30°
- Width: 790 mm
- Length: 1780 mm
- Track Length: 1300 mm
- Track Width: 200 mm
- Ground Clearance: 40 mm
- Platform Ground Height: 540 mm
- Max Speed: 4.2 km/h

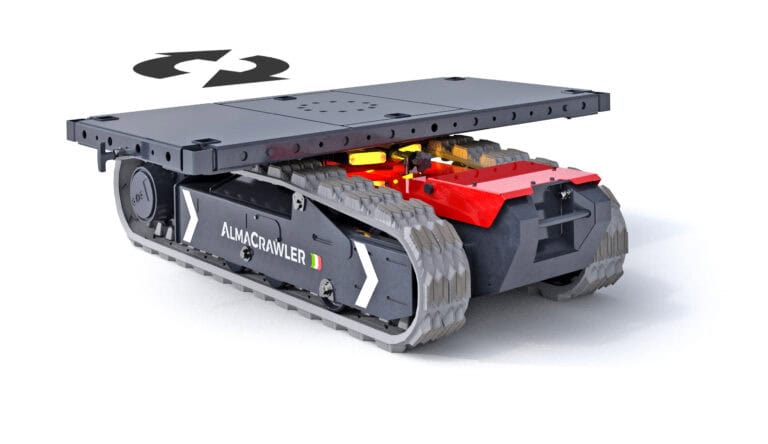

- Swivel Platform: Standard
- Power of Electric Motors: 10.6 kW
- Voltage: 48 V
- Ingress Protection IP: IP67
- Controller: Remote Radio Control
- Non-Marking Tracks: Optional
- LTH Battery Pack: LTH 100Ah
- LTH Recharging Time: 4h – 20A
- LTH Total Weight: 800 kg
- ELC Battery Pack: AGM 100Ah
- ELC Recharging Time: 7h – 13A
- ELC Total Weight: 870 kg
