Mini 12 EJ

Mini 12 EJ is powered by 230V mains and is especially suitable where continuous operation is required.

Mini 12 EBJ is powered by a heavy duty 24V/120 Ah battery pack with built-in charger capable of charging the batteries whilst the platform is in use. Operation is also possible independently of mains connection.

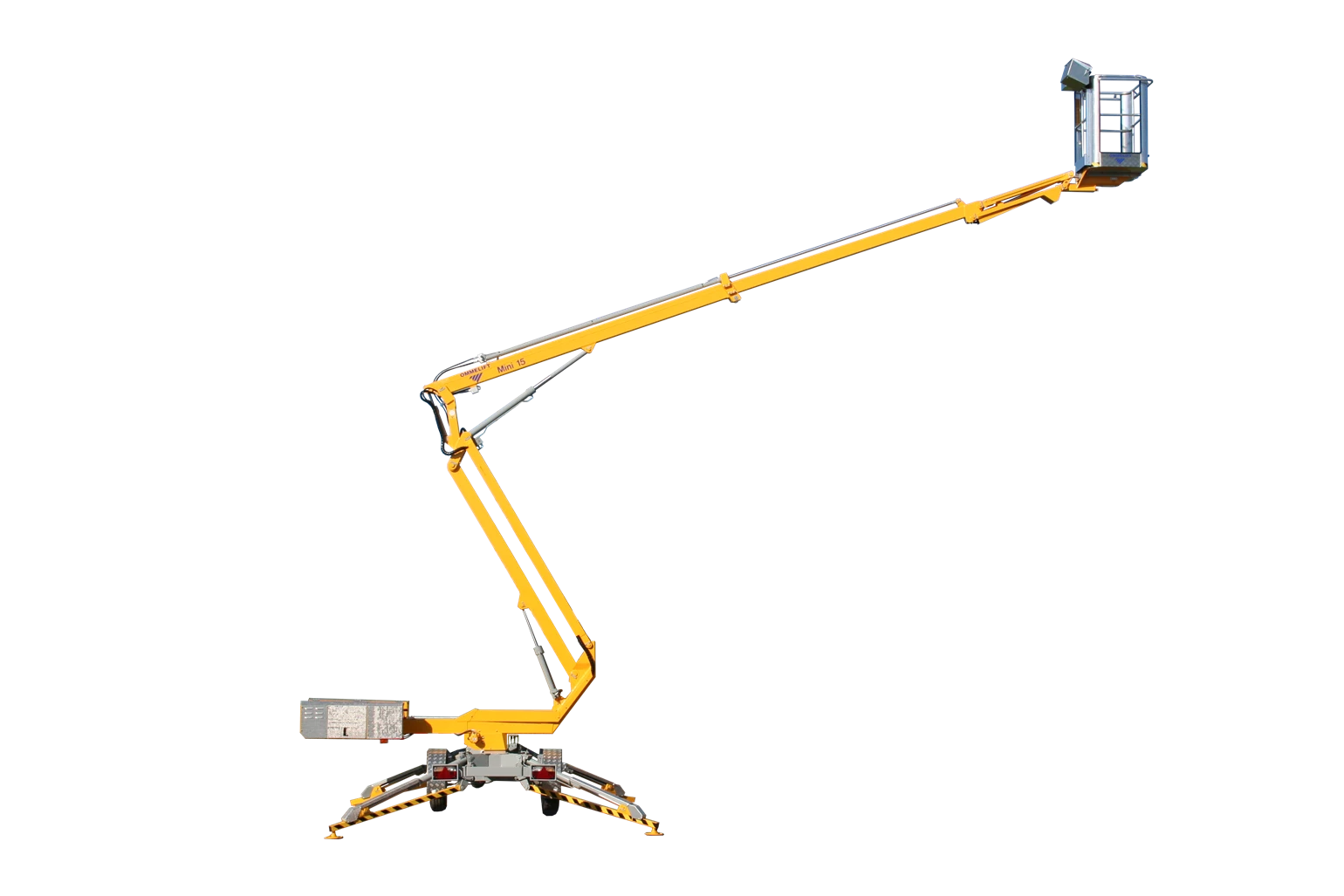

Mini 15 EXJ

Type Mini 15 EXJ is powered by 230V mains and is especially suitable where continuous operation is required. Type Mini 15 EXBJ is also powered by a heavy duty 24V/139 Ah battery pack with built-in charger capable of charging the batteries whilst the platform is in use. Operation is also possible independently of mains connection.

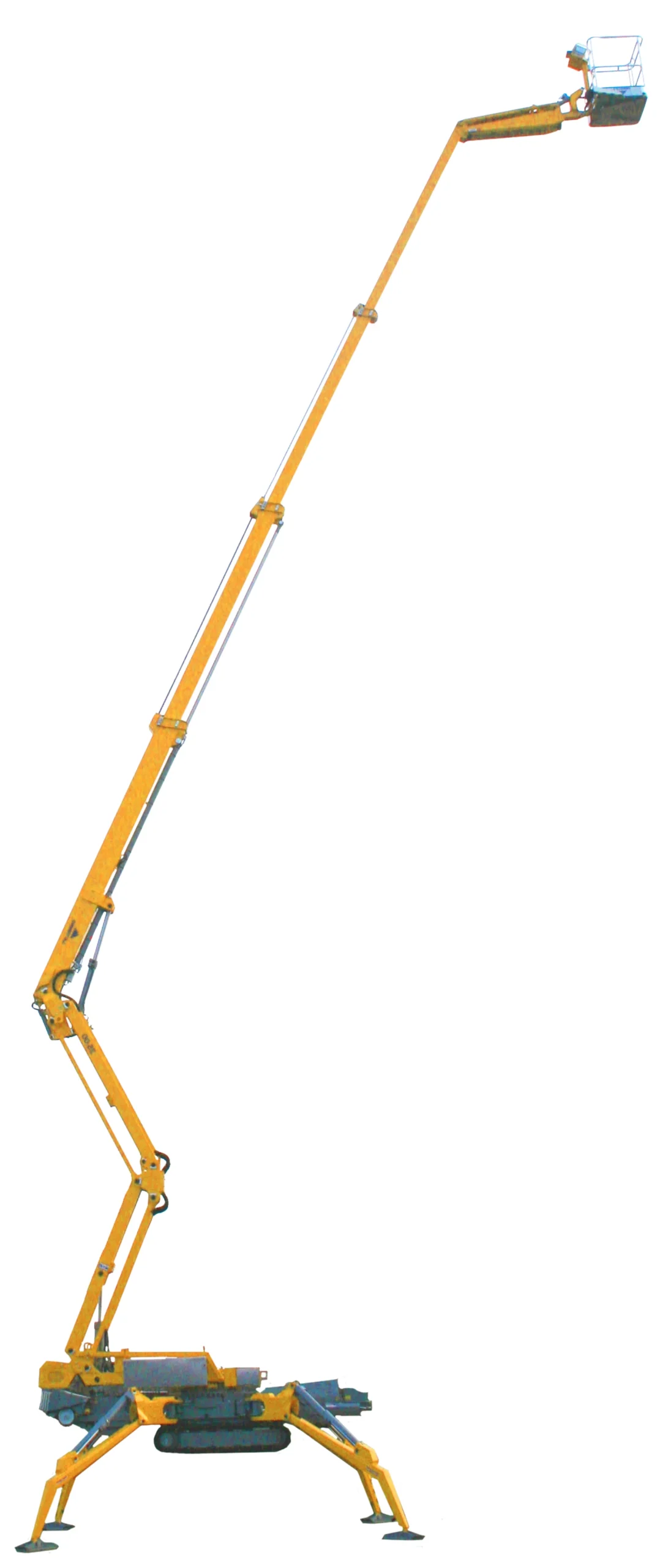

25.00 RXJ

Type 25.00 RXJ has a maximum working height of 25m (ft 82′) and an outreach of up to 12.8m (ft 41’). A dual parallelogram articulating riser gives 7m (ft 23′) up-and-over free clearance and provides vertical wall tracking

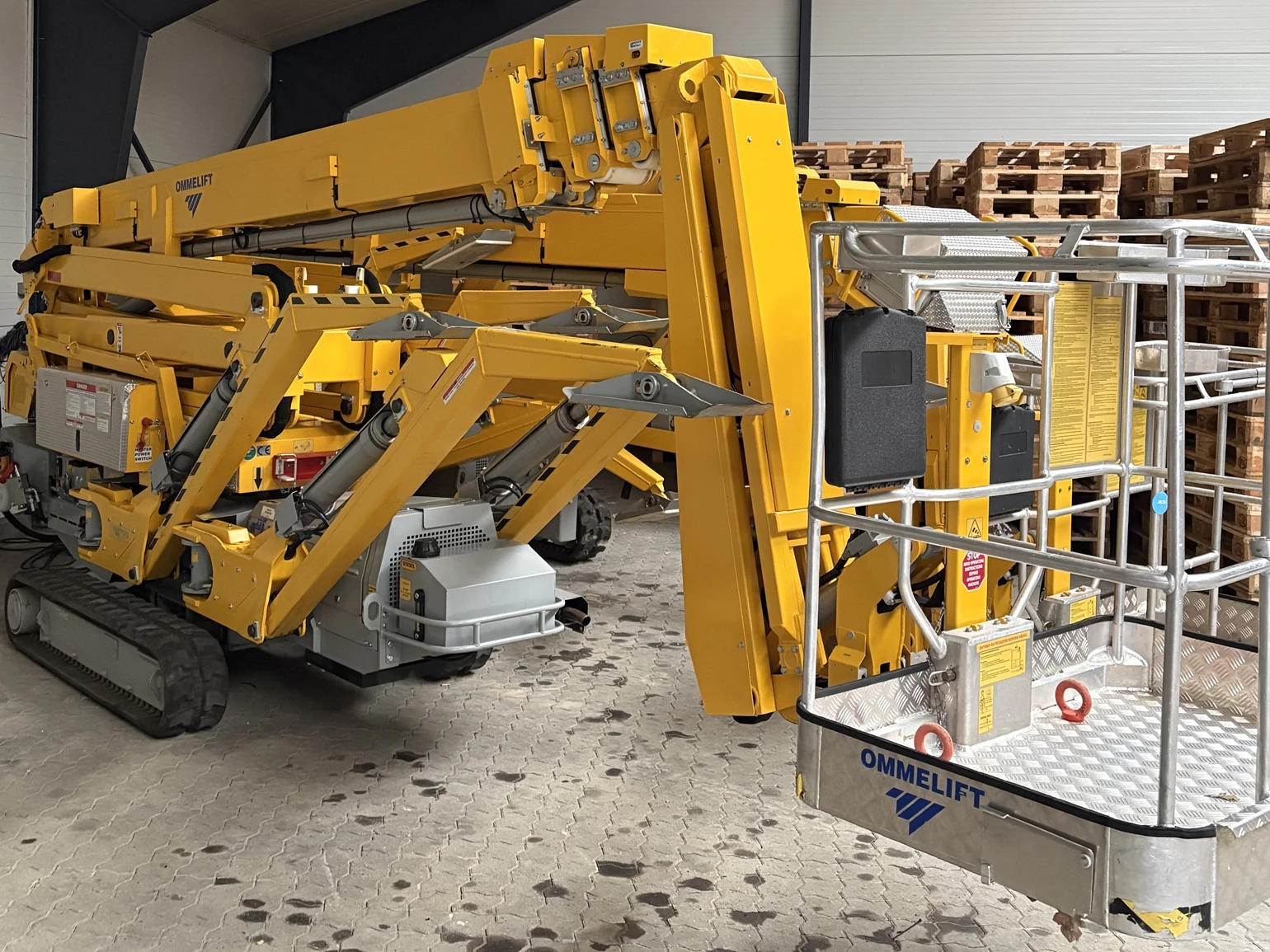

OMMELIFT 25.00 RXDJ (DIESEL)

Versatile and reliable crawler lift with long outreach and high stability. The rubber tracks ensure excellent manoeuvrability and low ground pressure – ideal for all kinds of outdoor applications.

Serial No.: 10696 IML

Year: 2022

Max. working height ………………………………………………………………. : 25.0 m

Max. outreach ………………………………………………………………………. : 12.8 m

Basket load ………………………………………………………………………….. : 200 kg

Power source ……………………………………………………………………….. : Diesel only

Weight approx. (optional equipment might increase the weight) : 4200 kg

Contact us for price and further information.

1300 E

1300E and 1300EB are identical apart from their power sources. Standard features include hydraulic stabilizers and 2-step dual controls to ground and basket. Design features include a basket mounting that forms a “fly” boom mounted to the top boom section and gives increased outreach over roof edges or other obstacles. The specially designed steel booms made from high and broad profiles allow a great outreach with an exceptional degree of stability and rigidity.

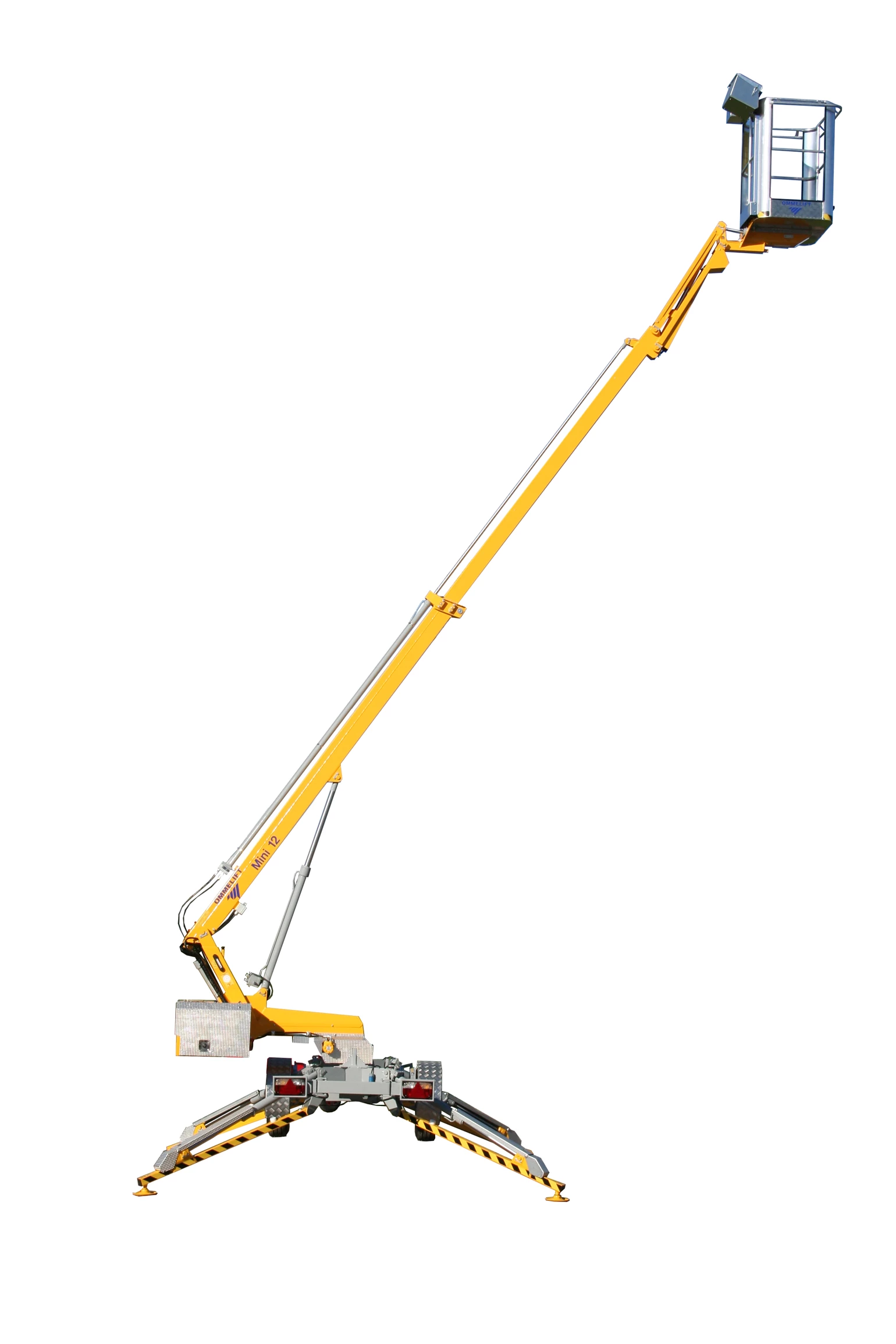

1500 EX

Travelling length 6.04 m. (19’7″) and 1.99 m. height (6’6″)
230 kg basket load (500 lbs)
Total weight 2.000 kg. (4409 lbs)
8.5 m outreach (27’9″)

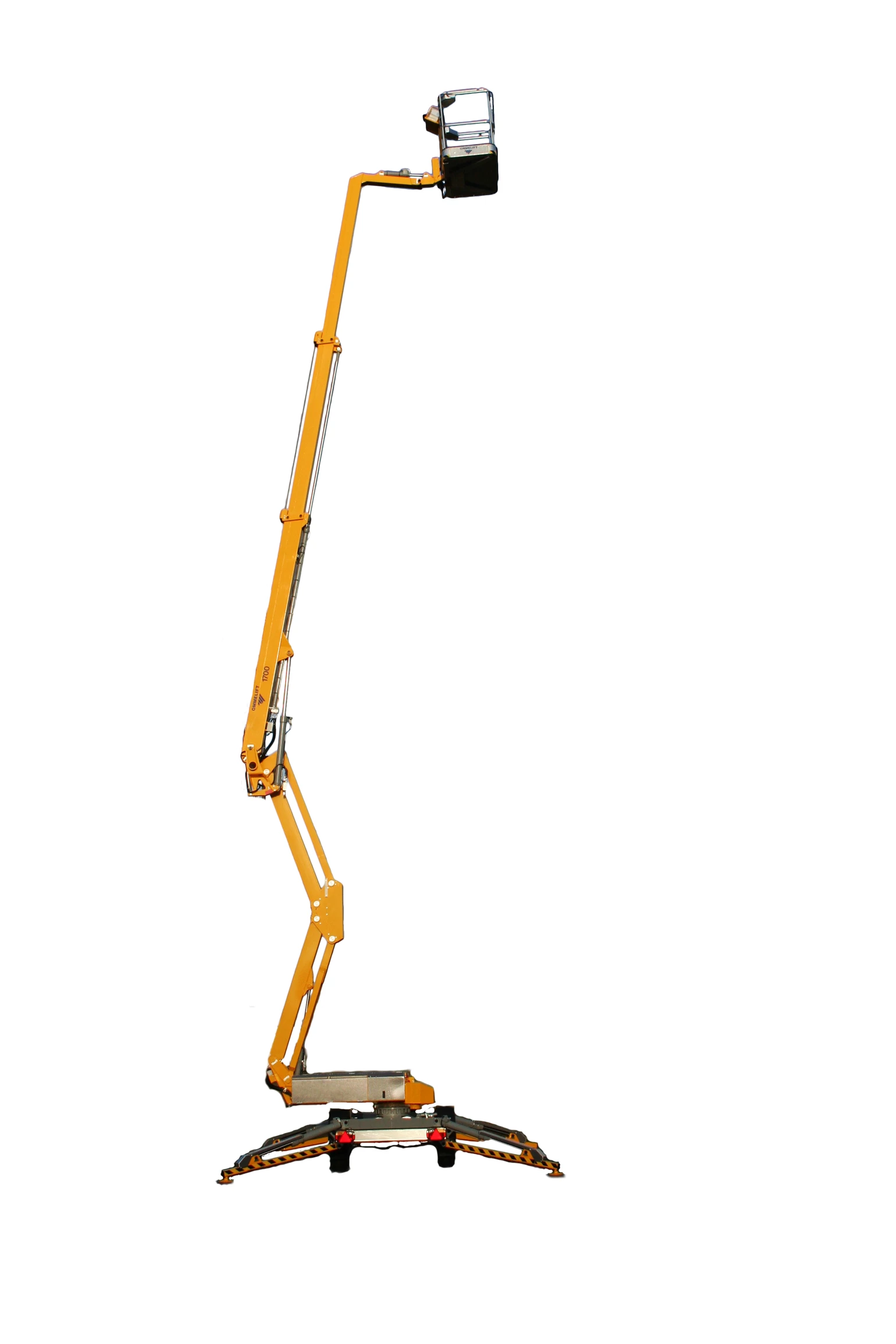

1700 EX

Compact dimensions
Quick and easy move to next assignment
Precise operation
Simple, intuitive controls
Great outreach
1700 EX is powered by an electric motor, connected to 230 V mains and is especially suitable where continuous operation is required.

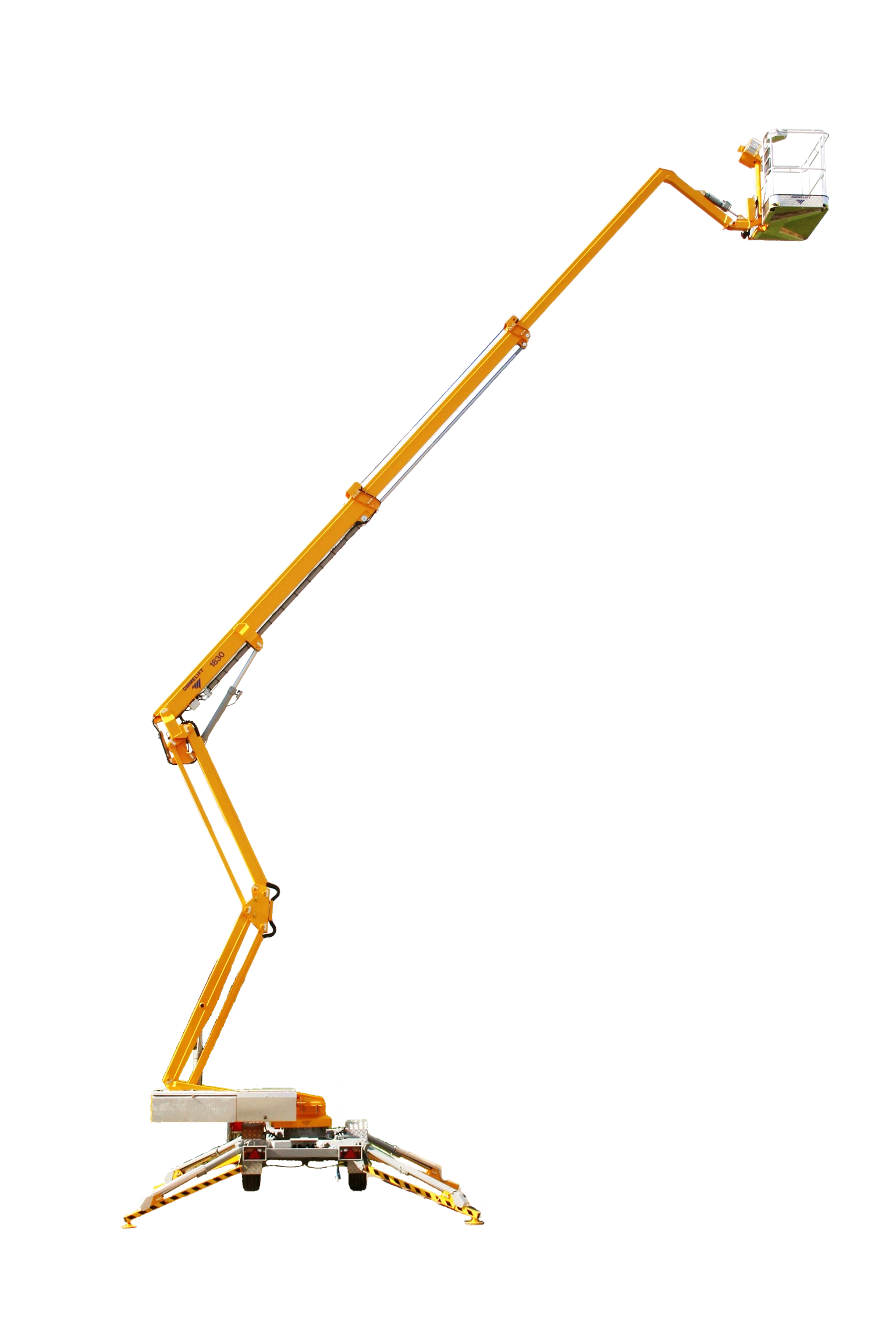

1830 EX

1830 EX is powered by an electric motor, connected to 230 V mains and is especially suitable where continuous operation is required.

1830 EXB is powered by a heavy duty battery pack, in total 24V/200 Ah/5h. Operation is possible independently of 230 V mains connection.

2100 E

2100 E, 2100 EB and 2100 EBD are identical apart from their power sources. Standard features include hydraulic stabilizers with interlocks, basket rotation and proportional controls with dual controls to ground and basket. Design features include a basket mounting that forms a “fly” boom mounted to the top boom section and gives increased outreach over obstacles.

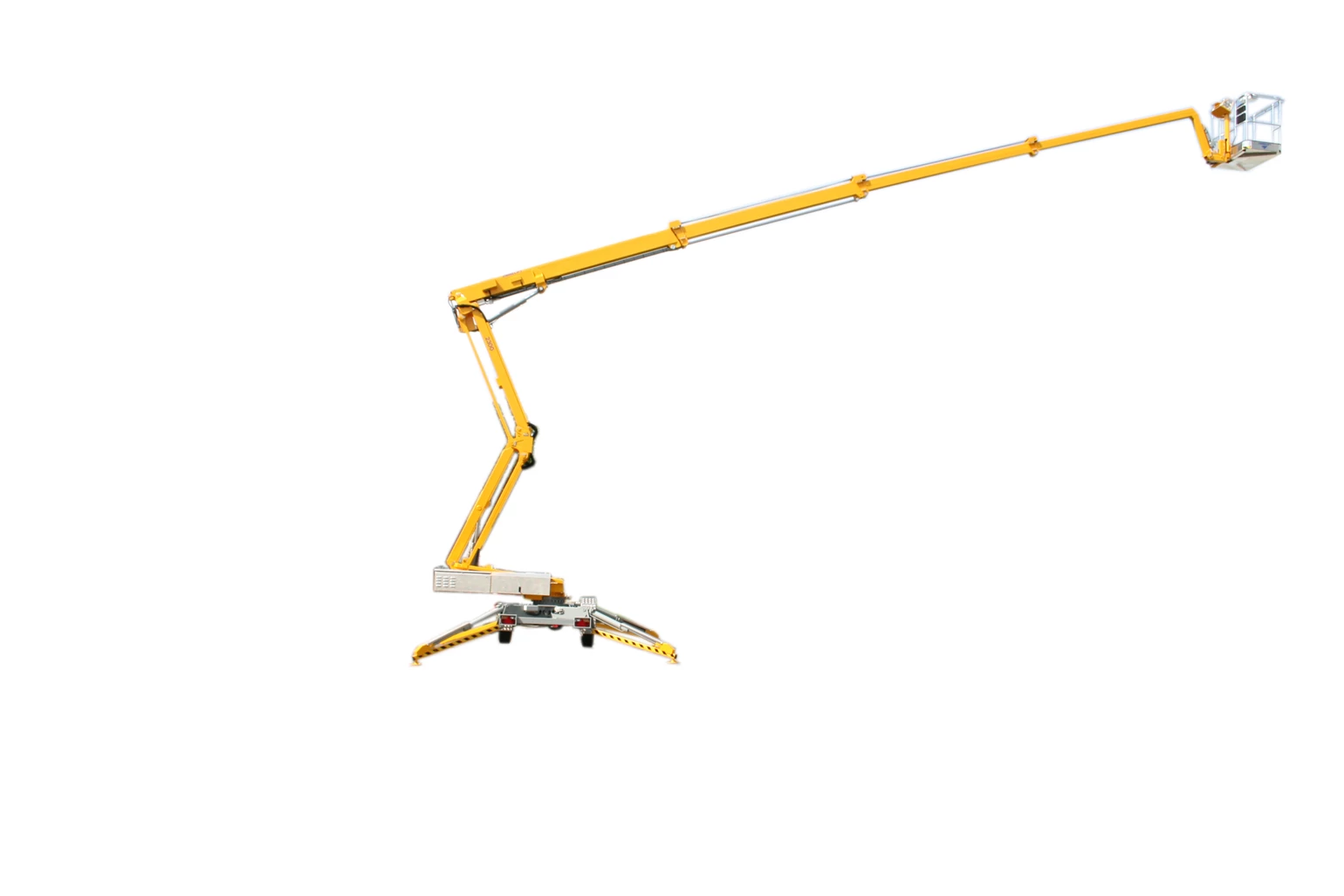

2300 EX

2300 EX is powered by an electric motor, connected to 230 V mains and is especially suitable where continuous operation is required.

Robust and powerful
Compact transport dimensions
Easy to instruct end user

2500 E

2500 E, 2500 EB and 2500 EBD are identical apart from their power sources. Standard features include hydraulic stabilizers with interlocks, basket rotation and proportional controls with dual controls to ground and basket. Design features include a basket mounting that forms a “fly” boom mounted to the top boom section and gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being shorter in travel length than most machines of this type, the 2500 E-series allows improved manoeuvrability.

2650 iRX-46kV

The insulated tracked platform 2650 iRX Category C 46kV, is designed for working close to power lines. All booms are insulated with Waco fibre glass sections which enables safe and manoeuvrable work. Type 2650 iRX is ANSI A92.2 compliant.

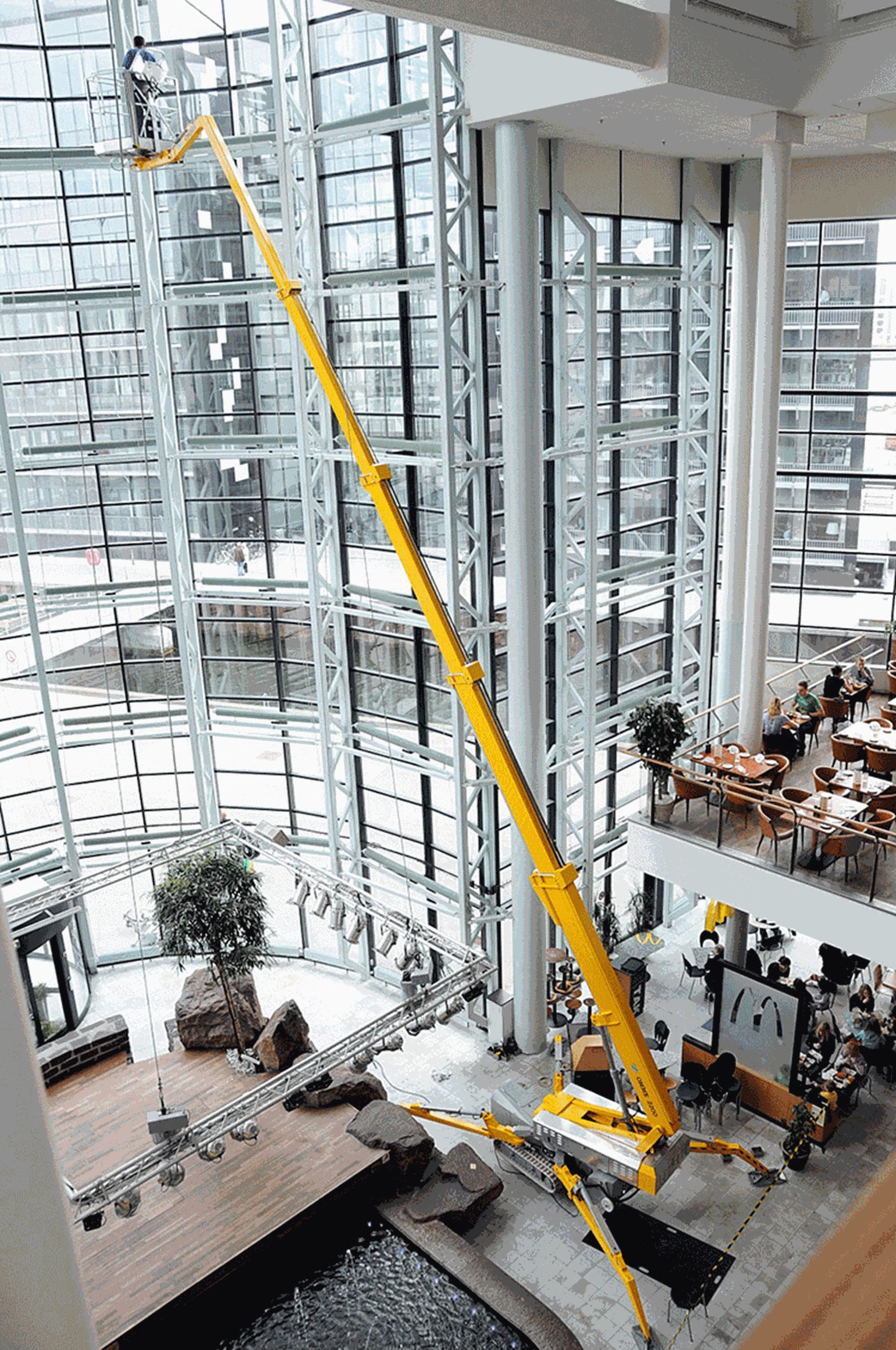

OMMELIFT 2750 RXBDJ

The crawler chassis is dispersing the machine’s already low weight widely when travelling on delicate surfaces like pavements, lawns, marble or similar. Generally, in connection with applications where high and extensive reach is required but low weight a necessity.

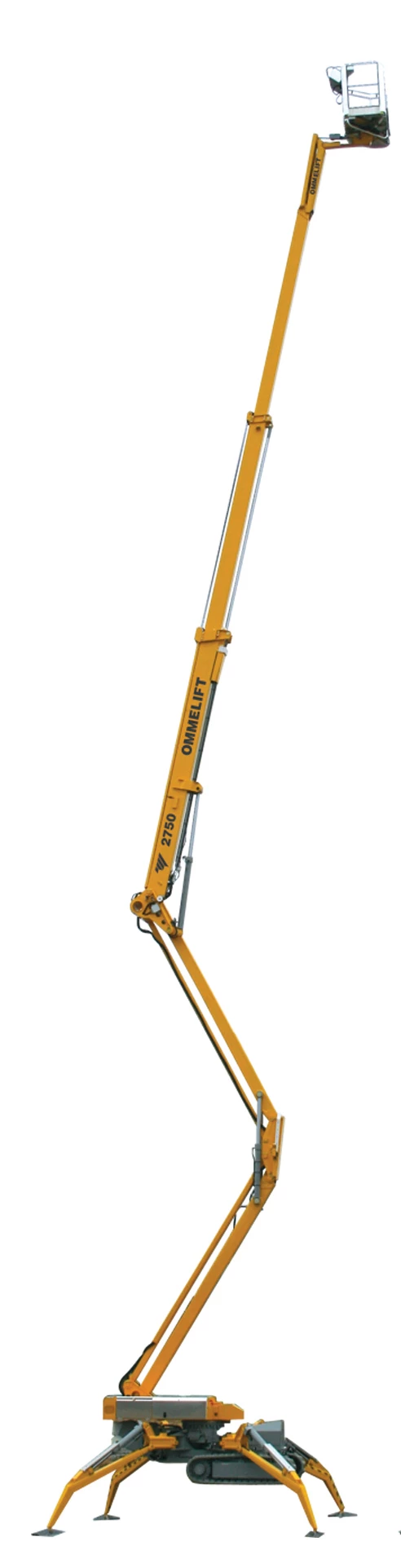

2750 RXJ

The diesel engine power allows the lift to traverse soft muddy terrain and grassed inclines. Gradeability is 35%, equivalent to 19.3°. Combined with the strong, non-skid crawler tracks the platform truly provides cross country access. The compact dimensions allow access in to narrow and awkward areas.

2900 E

2900 E, 2900 EB and 2900 EBD are identical apart from their power sources. Standard features include hydraulic stabilizers with interlocks, basket rotation and proportional controls with dual controls from ground and basket. Design features include a basket mounting that forms a “fly” boom mounted to the top boom section and gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being shorter in travel length than most machines of this type, the 2900 E-series allows improved manoeuvrability and is particularly suited when mounted on to a chassis cab.

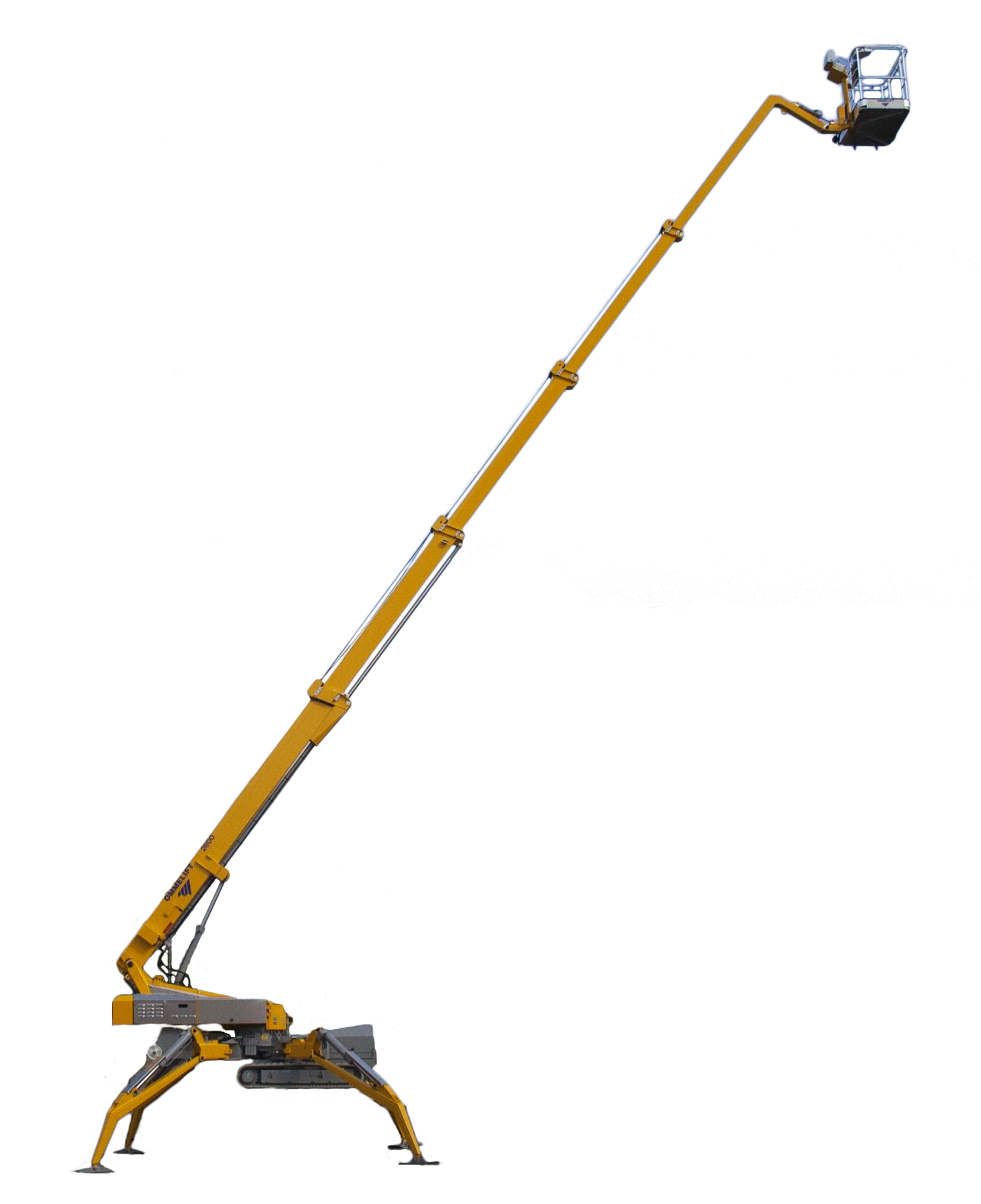

3000 R

Type 3000 RB and 3000 RBD are identical apart from the power sources. Standard features include hydraulic stabilizers, turnable basket and proportional controls. The adjustable stabilizer spread provides substantial reduction in operational width. The basket mounting that forms a “fly” boom mounted to the top boom section gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being short in travelling length the platform is extremely manoeuvrable in narrow places. The self-propulsion system is electronically operated by proportional levers comfortably placed in a light weight mobile control box.

3150 RJ

Type 3150 RBJ and 3150 RBDJ are identical apart from the power sources. Standard features include hydraulic stabilizers, turnable basket and proportional controls. The adjustable stabilizer spread provides substantial reduction in operational width. The basket mounting that forms a “fly” boom mounted to the top boom section gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being short in travelling length the platform is extremely manoeuvrable in narrow places. The self-propulsion system is electronically operated by proportional levers comfortably placed in a light weight mobile control box.

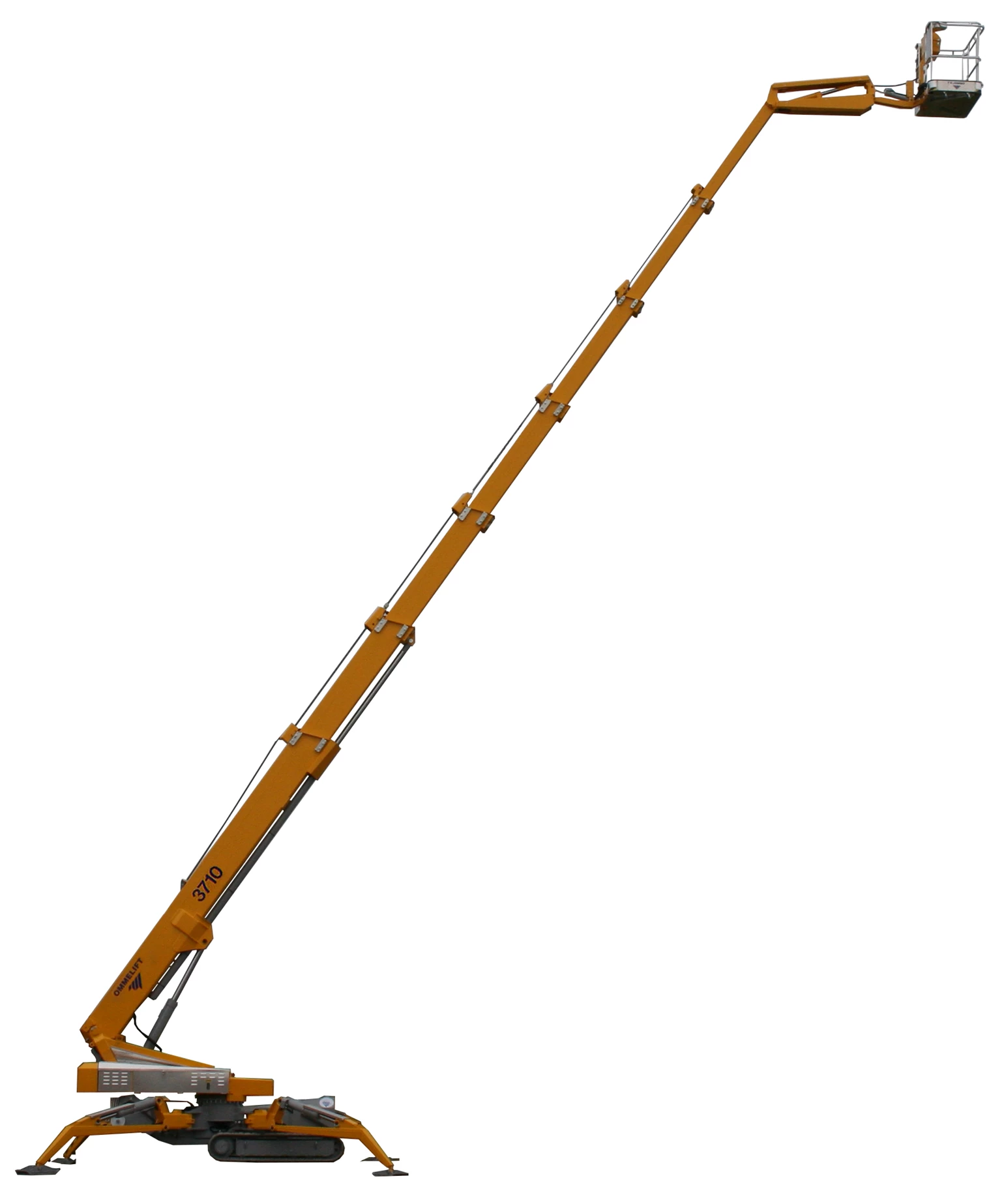

3710 RJ

The diesel and battery bi-energy power pack makes the lift equally efficient in outdoor as in indoor environments. At outdoor operation the diesel engine is the natural choice. When working indoor the electronic motors powered by 8 high capacity batteries are the motive force. No annoying and hazardous extension cables linked to mains are needed when travelling down the indoor lanes with an amazing speed and turning strength.

4200 RJ

The diesel and battery hybrid power pack makes the lift equally efficient in outdoor as in indoor environments.
At outdoor operation the diesel engine is the natural choice. When working indoor the electronic motors powered by 8 high capacity batteries are the motive force. No annoying and hazardous extension cords connected to mains are needed when travelling inside e.g. atriums. The rapid 2-gear undercarriage is quickly in position with an amazing speed and turning strength.
