Features

The diesel engine power allows the lift to traverse soft muddy terrain and grassed inclines. Gradeability is 35%, equivalent to 19.3°. Combined with the strong, non-skid crawler tracks the platform truly provides cross country access. The compact dimensions allow access in to narrow and awkward areas.

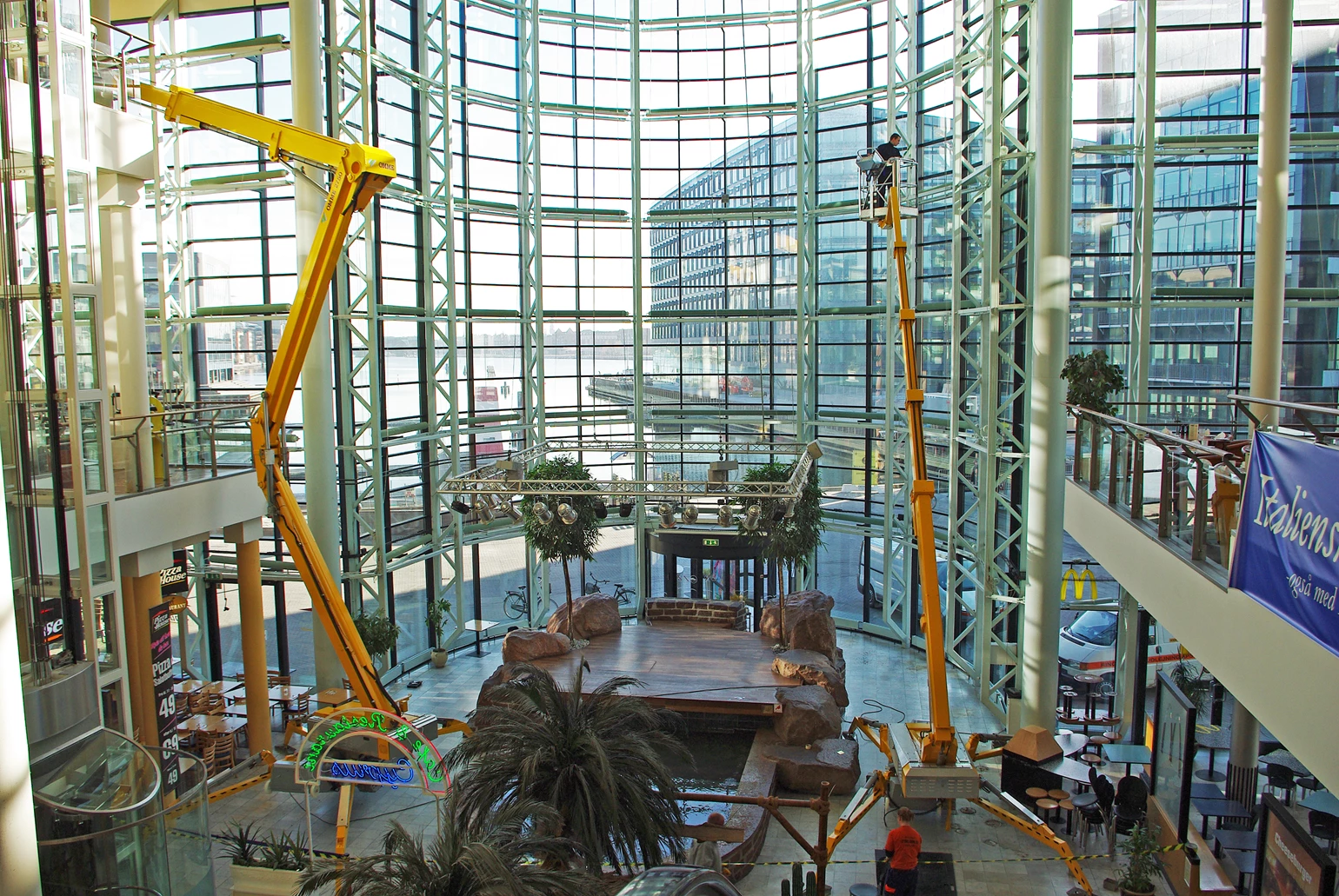

The all-terrain features are not only for park and woodland areas, but also for working internally for example in shopping centres. The low ground pressure and the non-marking tracks offer optimal protection when driving on vulnerable surfaces.

An outreach of up to 15.5 m (ft 51′) and a zero tail swing articulating riser give an exceptional 10.5 m (ft 35′) up and over reach. The long movable jib enables fine adjustment. A maximum working height of 27.5 m (ft 90′) together with the exceptional outreach offer huge versatility in application. High utilisation means cost efficiency.

The manual levelling of the stabilizers ensures safe set up in the most difficult situations the first time and every time. Deployment is actually possible on uneven ground of up to 35%, allowing set up on hilly ground, steps or banks.

Type	2750 RXBJ Battery	2750 RXBDJ Hybrid
Max. working height	27.5 m	27.5 m
Max. outreach	15.5 m	15.5 m
Max. basket load	250 kg	250 kg
Basket size	1.25 x 0.8 x 1.1 m	1.25 x 0.8 x 1.1 m
Basket rotation	±41°	41°
Turret rotation	±355°	355°
Travelling length	7.34 m / 6.59 m	7.34 m / 6.59 m
Travelling height	2.19 m	2.19 m
Travelling width	1.50 m / 1.10 m	1.50 m / 1.10 m
Operational width	4.59 m / 3.72 m	4.59 m / 3.72 m
Battery (maintenance-free)	24 V / 400 Ah / 5h	24 V / 180 Ah / 5h
Charger	24 V / 30 A	24 V / 30 A
Diesel engine	–	14 kW / 18.8 hp
Generator	–	24 V / 22 A
Total weight	5180 kg	5180 kg
Gradeability, max. up and down slope	35% / 19.3°	35% / 19.3°
Deployment ability on slopes up to	30% / 16.7°	30% / 16.7°

Title	Document Type	Download
Brochures 2750 RXJ	PDF	Download
